Calling all RAAF "Know it alls"

Postby asho77 » Sat Mar 08, 2014 2:49 pm

Guy's, I'd love to build a model of the RAAF UH-1 (B/C) Huey but I just cannot find any colour photos of it anywhere to work out the paint scheme. Know I know it had silver, day glow orange and white on it..but where? Also....decals, where can I get the "RAAF RESCUE" and serial number decals from? The tri-colours would be easy to paint and the kangaroo roundels I'm sure I have somewhere. Anyway..all and any help would be greatly appreciated. Regards, Gav


My guess is...
White- Across the roof to the intake section, tail boom on "RAAF RESCUE" section and tip of tail with serial number
Orange- Top of tailboom over the white panel that ha RAAF RESCUE on it
Silver- Rest of the body

What do you guys think?
asho77
Devotee

Posts: 1057
Joined: Fri Dec 03, 2010 12:59 pm

Re: Calling all RAAF "Know it alls"

Postby B_Finch » Sat Mar 08, 2014 3:01 pm

GAV,
" know it alls" has a harsh remark to it.... just a simple "help" would have done.

I would have a suggest it would have to be the same font USAF Armadillo but i dont think there is any makings been done for it,
Cheers
Brendon.
User avatar
B_Finch
Devotee

Posts: 388
Joined: Thu Nov 18, 2010 8:09 pm
Location: Werribee, Victoria

Re: Calling all RAAF "Know it alls"

Postby davecana » Sat Mar 08, 2014 3:04 pm

My guess would be to add yellow for the band to where RAAF RESCUE is written up to the point where you said orange would be across the top of the tail boom.
davecana
Devotee

Posts: 411
Joined: Tue Apr 05, 2011 11:25 pm

Re: Calling all RAAF "Know it alls"

Postby asho77 » Sat Mar 08, 2014 3:13 pm

B_Finch wrote:GAV,
" know it alls" has a harsh remark to it.... just a simple "help" would have done.

I would have a suggest it would have to be the same font USAF Armadillo but i dont think there is any makings been done for it,



Sorry Brendon, no offence implied, but I do need someone who knows it all about this aircraft at least. ;)
asho77
Devotee

Posts: 1057
Joined: Fri Dec 03, 2010 12:59 pm

Re: Calling all RAAF "Know it alls"

Postby enfield38 » Sat Mar 08, 2014 3:30 pm

G'day Gav,

do these help? The first two are scans from an old RAAF Museum Calendar, the other one is from the web. I can't remember where but full credit to the owners whoever you are!!! Black USAF 45 degree style lettering is available from several decal manufacturers.



Cheers,
Rod C
User avatar
enfield38
Devotee

Posts: 988
Joined: Thu Nov 18, 2010 8:09 pm

Re: Calling all RAAF "Know it alls"

Postby enfield38 » Sat Mar 08, 2014 3:43 pm

And on further examination of your original pic Gav, and another few on ADF-Serials, there were some subtle changes to 384's colour scheme during her early days it seems. Never noticed before...

The bottom pic is a later one judging from the SARAH antenna between the pilots door and the chin window. This was the homing system for the Sabre bang seat beacon. Also, if looking at the ADF Serials pics, note the single windscreen wiper. The one for the co-pilot was a later mod.
Cheers,
Rod C
User avatar
enfield38
Devotee

Posts: 988
Joined: Thu Nov 18, 2010 8:09 pm

Re: Calling all RAAF "Know it alls"

Postby asho77 » Sat Mar 08, 2014 3:50 pm

BRILLIANT !!!!!!!!!!!!!!! Exactly what I was looking for. The best kit for this would be the Italeri one I think? Some of the schemes vary in between all the pics but at least I can now see the bottom was day glow orange.
asho77
Devotee

Posts: 1057
Joined: Fri Dec 03, 2010 12:59 pm

Re: Calling all RAAF "Know it alls"

Postby B_Finch » Sat Mar 08, 2014 3:57 pm

asho77 wrote:
Sorry Brendon, no offence implied, but I do need someone who knows it all about this aircraft at least. ;)


Hi Gav,


What scale???
I have a hobby boss 1/72 'B' and it isnt that bad.
Cheers
Brendon.
User avatar
B_Finch
Devotee

Posts: 388
Joined: Thu Nov 18, 2010 8:09 pm
Location: Werribee, Victoria

Re: Calling all RAAF "Know it alls"

Postby EXBIRDY » Sat Mar 08, 2014 4:03 pm

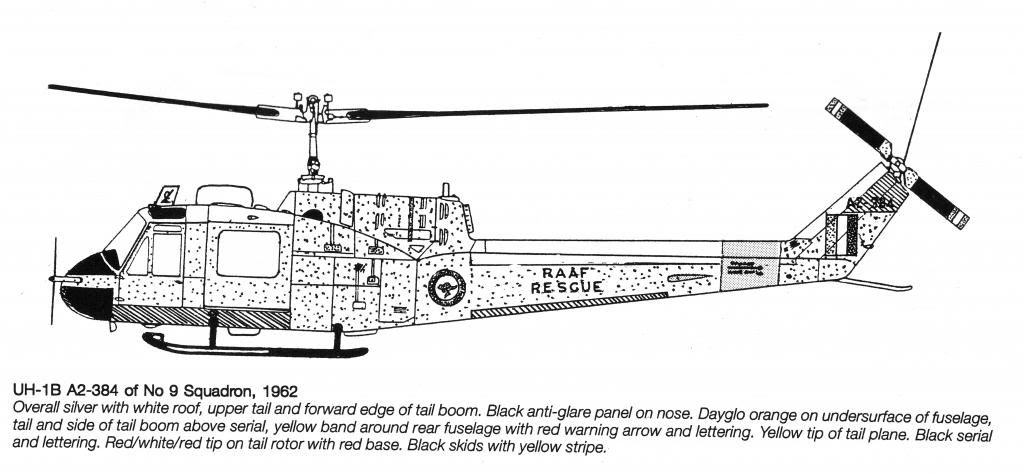

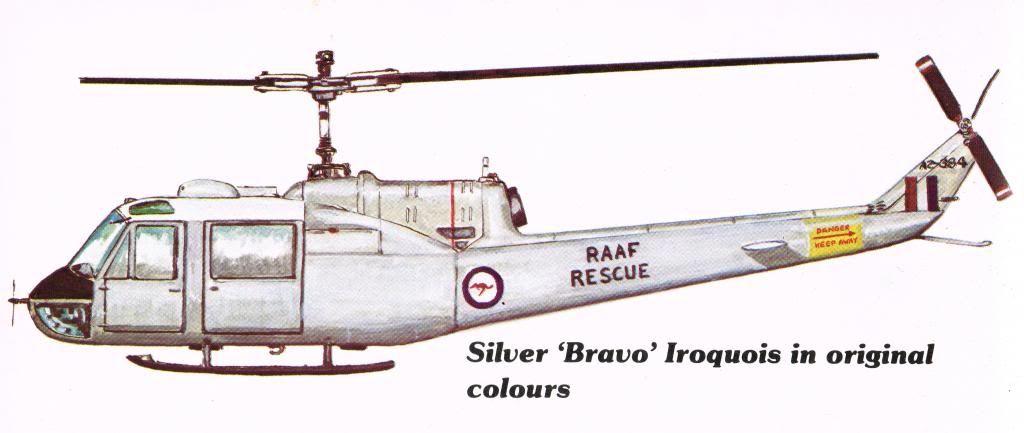

Some more photos and drawings from Stewart Wilsons and Aussie Iroquois books. Note that there are no wind deflectors fitted in front of the cabin sliding doors.
John
[url][URL=http://s197.photobucket.com/user/JJELLIS_PHOTO/media/UH-1%20IROQUOIS/A2-384SW_zpsf6b4ad67.jpg.html]Image[/url][/url]
[url][URL=http://s197.photobucket.com/user/JJELLIS_PHOTO/media/UH-1%20IROQUOIS/A2-384AI_zpsd37798fe.jpg.html]Image[/url][/url]
[url][URL=http://s197.photobucket.com/user/JJELLIS_PHOTO/media/UH-1%20IROQUOIS/A2-384AI2_zps0dce9cfe.jpg.html]Image[/url][/url]
[url][URL=http://s197.photobucket.com/user/JJELLIS_PHOTO/media/UH-1%20IROQUOIS/A2-384AI1_zps81976c95.jpg.html]Image[/url][/url]
EXBIRDY
Devotee

Posts: 111
Joined: Sat Nov 20, 2010 1:42 pm
Location: Darwin NT Australia

Re: Calling all RAAF "Know it alls"

Postby asho77 » Sat Mar 08, 2014 5:13 pm

Thanks John...I think I need to invest in that book. What's the details so I can find a copy online? I think name of book,author,publisher and ISBN number should do it.
asho77
Devotee

Posts: 1057
Joined: Fri Dec 03, 2010 12:59 pm
